All About HAPPY's HCD-1501
Tabletop Industrial Embroidery Machine

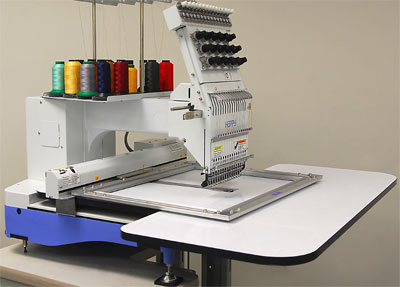

The HCD-1501 is HAPPY's latest 15-needle, single-head commercial embroidery machine.  Engineered with the newest technology and HAPPY's traditional durability, the HCD-1501 provides unbeatable sewing power in a single-head machine.



ADDITIONAL FEATURES


  • Networkable - capability built in to each machine
  • Accepts popular 3rd-party hoop & clamp systems for great flexibility
  • Fast operation: 1200 spm, high speed color change
  • Holds up to 99 designs or 1,000,000 stitches
  • Limited 5-year warranty
  • Holds 99 designs with up to 99 color changes each
  • Match to HAPPY hoops or custom hoops on screen

                         34.3" h






   |---- 30.8" w ---|

 |----- 34.5" L  ----|



weight: 233 lbs.
Dimensions of HCD-1501 Single Head Embroidery Machine



HAPPY Embroidery Machines


HCD-1501 Single Head Embroidery Machine

Friendly Control Panel -Adjustable color display and built-in help

Flash Card Slot
Compact Flash memory cards slot - up to 1Gb cards.

USB Jump Drive Slot -  Sometimes known as USB "Memory Sticks".

PC Connection Ports -  Serial, USB and LAN ports.

           Key Features

• 15 needles, 16.75"x 17.5" sewing field
• Friendly color control panel with built-in help
• Max cap sewing area 14.2"x3" with included cap kit
• 1 million stitch memory or 99 designs
• Easy maintenance: quick access lubrication points - no
   need to remove covers or access panels
• Automatic notification of oiling/maintenance intervals

• Durable construction for demanding production schedules
• Auto recovery of design after power failure or user shut-down
• New pantograph system allows generous sewing field without
  taking up the space of a conventional drive system
• Fast cap change system - completely tool-less, no need to
   power off machine

Actual observed performance may vary depending on conditions.  Information on these pages may be subject to change without notice.
